how to do it in Excel: a shaded range

Today's post is a tactical Excel how-to: adding a shaded region to depict a range of values.

To illustrate, let’s consider an example from the tourism industry. Suppose a watersports company offers four categories of outings: fishing charters, family rentals, nature cruises and sunset cruises. The graph below shows the monthly volume of passengers for each offering over a year.




We can see there’s clear seasonality in this business—overall volume is highest in the summer and each outing type generally follows the same monthly pattern. Let’s say you manage the Family rentals and you’d like to compare your monthly volume to what you’re seeing across the entire fleet.

For the purpose of this tactical illustration, let’s assume the shape of the data—relative peaks and valleys—is more important than the specifics of each category individually. If that’s the case, I can simplify by showing a shaded region to depict the range of absolute passengers each month.

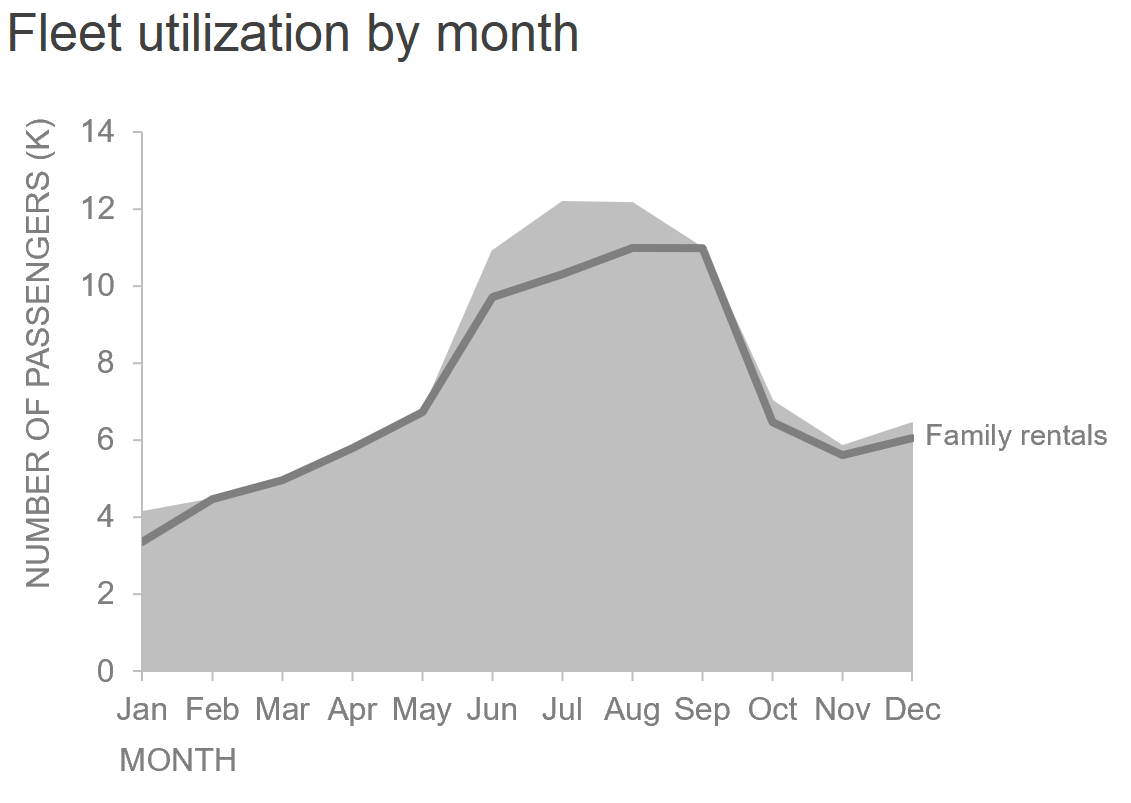

My resulting graph looks like this:




Creating this shaded region in Excel requires some brute-force formatting utilizing area charts. Here’s a step-by-step overview of how I accomplished this—you can download the file to follow along.

In my Excel spreadsheet, the data graphed above looks like this:

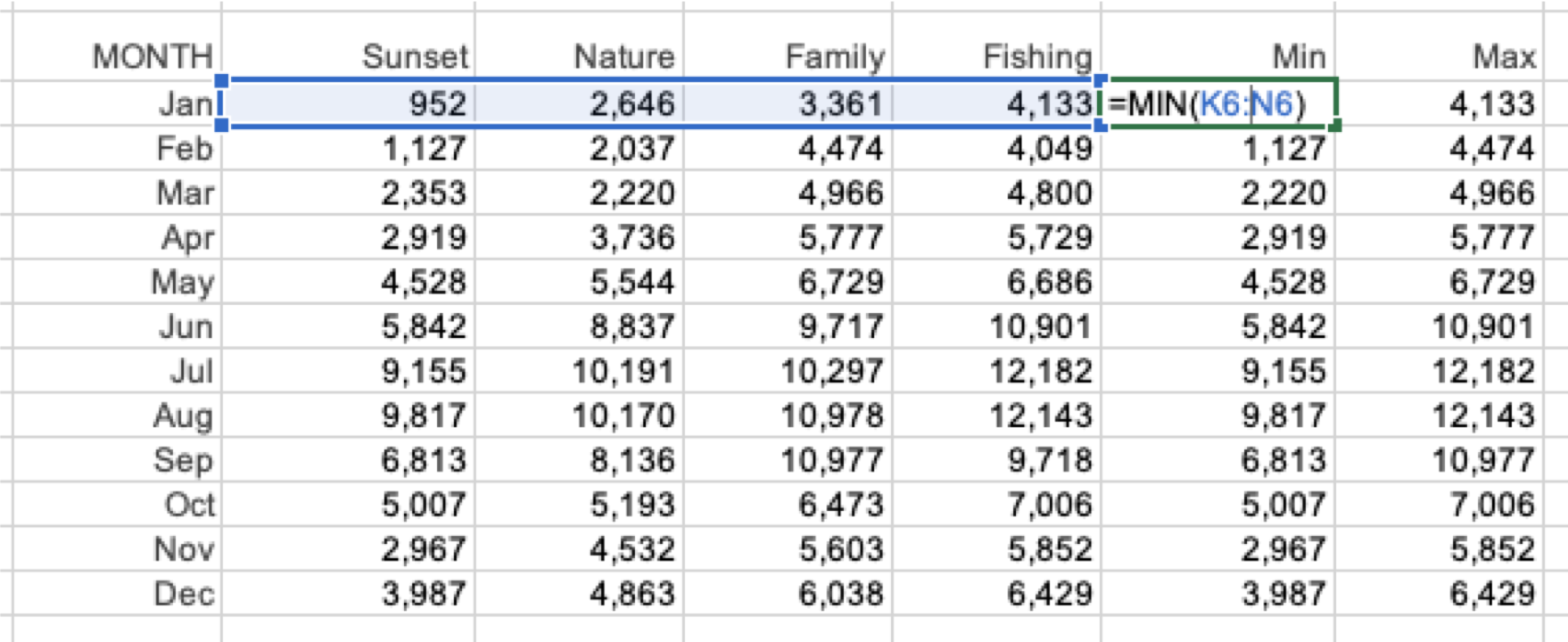

The first thing I’ll do is add two new columns calculating the minimum and maximum values for each month. I used a =MIN() and =MAX() function and my resulting series looks like this:




To create the shaded region, first I added the Min and Max as new data series and deleted the lines depicting fishing, sunset and nature. Then I adjusted the formatting of Min and Max to create the grey band around family rentals. The following steps show how I accomplished this:

Next, delete the series for fishing, nature and sunset cruises (leaving only family rentals displayed) by highlighting each individual line and pressing delete




Add a new data series for the Maximum by right-clicking the chart and choosing Select Data:




In the Select Data Source dialog box, click the + button to add a new data series for the Maximum (my Max series is in cells P6:P17 with Name in P5). Click OK when done.




My resulting chart looks like this:

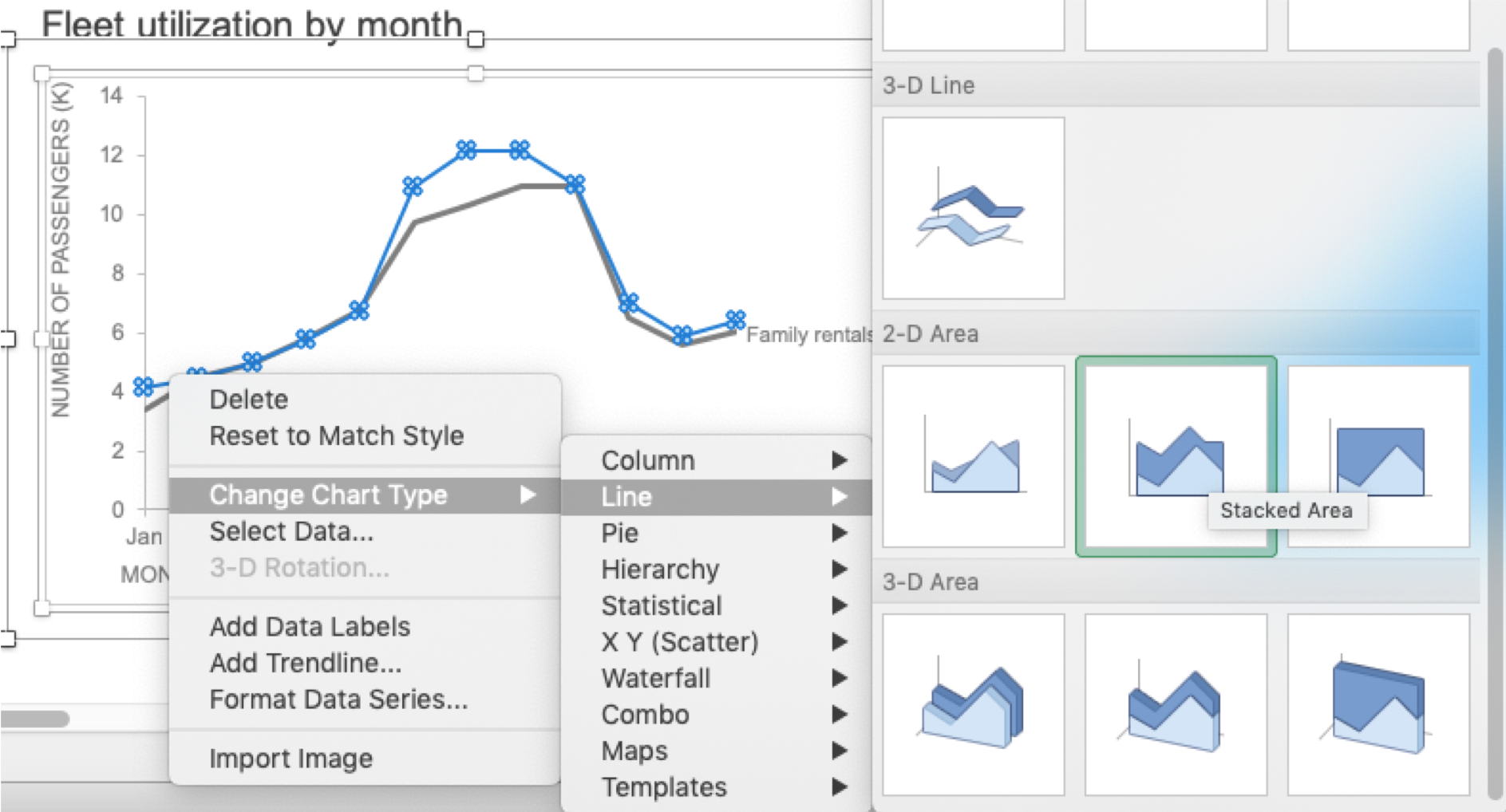

Reformat the the Max line by changing it to a 2D stacked area: right click the “Max” line, go to “Choose Chart Type” then select “Line”. Scroll down to the 2D area types and select the 2D stacked area chart (It’s the middle one for my version of Excel):




My resulting graph looks like this:




Change the Max 2D stacked area to grey fill by right-clicking the series, choosing Format Data Series

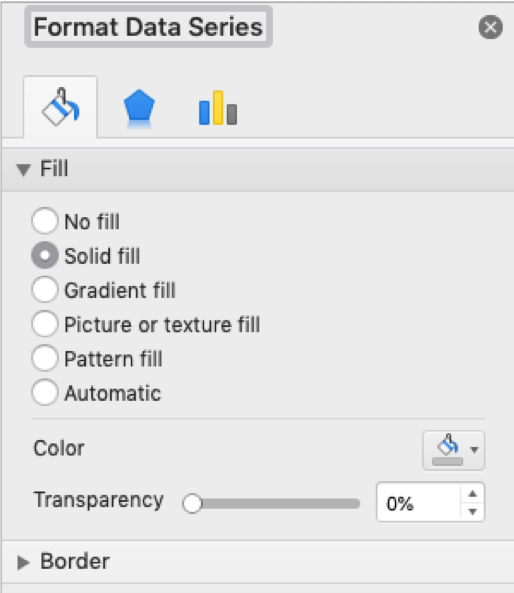

In the Format Data Series dialog box, select Fill and choose the Solid fill option. My selected grey is RGB 191-183-185.




My resulting chart looks like this (note: my Max stacked area chart is set to display as Series 2 although we’ll adjust this in a later step):




Add a new data series for the Minimum by right-clicking the chart and choosing “Select Data”:




In the Select Data Source dialog box, click the + button to add a new data series for the Minimum (my Min series is in cells O6:O17 with Name in O5). Click OK when done.




My resulting chart looks like this:




Reformat the Min line by changing it to an area: right click the “Min” line, go to “Choose Chart Type” then select “Line”. Scroll down to the 2D area types and this time, we’ll select the 2D area chart (mine is the first one in my version of Excel):




My resulting graph looks like this:




Reformat the Min 2D area to grey fill by right-clicking the series, choosing Format Data Series:




In the Format Data Series box, change to Solid fill with Color = White. Under Border, select No line




The result is this:




For final formatting changes, I added text boxes for the Max and Min labels and changed Family rentals to render in black for sufficient contrast against the grey band. Depending on where your Max series is displayed, you may also need to ensure that the white Min series is displayed on top if it is not rendering. Highlight the Max series and in the formula bar, ensure the last option is 2. You can also adjust the display order in the “Select Data Series” dialog box.




Voila! A shaded region to emphasize a range around my data point of interest:




Are there other brute-force Excel methods you’re aware of for achieving this effect? Or other considerations with embedding this shaded region? Leave a comment with your thoughts and stay tuned for a new resource coming soon where you can practice and share similar tips!


Elizabeth Ricks is a Data Visualization Designer on the Storytelling with Data team. She has a passion for helping her audience understand the ’so-what?’ as concisely as possible. Connect with Elizabeth on LinkedIn or Twitter.

tactical tip: embedding a vertical reference line in Excel

Today's post is a step-by-step Excel “how-to” inspired by a reader question we received following a recent post on using dotted lines in data visualizations.

Dave asked:
“Do you know of a trick for drawing vertical lines to delineate years (or actuals/historical vs forecast/future segments of the chart)? I currently have to draw them with the line drawing tool, which gets messy when moving the chart on a PPT slide. If there were a way to embed it in the data or somehow format the chart, that'd be awesome.”

The following chart illustrates what Dave describes. The data is units of output over time where the first nine months of the series are actual data and the remaining four months of the year are a forecast. The dotted line serves as a visual cue to differentiate actual from forecast. Created in Excel, the line was physically drawn on the graph with the Shape Illustrator. While this approach might suffice as a quick method for achieving the desired effect; it isn’t ideal for recurring use of the graph, particularly if the line’s position on the x-axis might change in future iterations.




After some research and playing around in Excel, I’ve devised one method for achieving this effect, which I’ll outline in this post (I’m sure there are others!). Don't be dismayed by the number of steps: it's a one-time setup after which can be easily refreshed in future iterations by changing where you want the reference line. I’m using Excel 2016 and you can download the accompanying file.

In my spreadsheet, the data for the Output over time chart looks like this:




1. Go to a blank cell range and enter these values as shown in my screenshot below. I’m choosing to add these new values directly underneath my data range in cells F19:G21. This will eventually become the coordinates for a secondary scatterplot that we’ll add in a later step.




2. Choose where you want the vertical reference line to cross the x-axis and enter those values below “X”. In this example, I want the line located on the September data point, the ninth point in my data series. In cells G20:G21, I entered “9” in each, as shown below. (Note: for a more automated approach in a larger dataset, a MATCH formula could also calculate where September falls in the range: =MATCH("Sep",$F$7:$F$18,0).




3. Add a new data series by right-clicking the graph and choosing Select Data:




4.  In Select Data Source dialog, click the Add button.




5. In the Edit Series dialog, enter a name for your data series (I chose “reference”) and select the X values you entered from Step 2. I selected the 9’s in G20:G21. Click OK to exit the dialog boxes.




The resulting visual looks like this:




6. Right click the new line and choose Change Series Chart Type.




7. In the Change Chart Type dialog box, select Combo section under All Charts tab. Then select Scatter with Straight Lines and check the option for Secondary Axis. Click OK to exit.




The resulting visual looks like this:




8. Go to the chart, right click the red reference line and choose Select Data again. In the Select Data Source dialog, highlight reference and click Edit.




9. In Edit Series dialog, update the X values to be the original values you selected in Step 5. Set the Y values to be 0,1. Click OK to exit.




The resulting visual looks like this:




The remaining steps are visual cleanup: first, I forced the red line to align with the top of the primary y-axis and second, I hid the secondary axis line and text labels.

10. Right-click on the secondary y-axis and select Format Axis:




11. In the Axis options section, type 1 into the textbox beside the Maximum option.




12. In the Text Options section, under Text Fill, choose No fill. This will remove the text labels on the secondary y-axis.




13. In the Axis Options section, under Line, choose No line. This will remove the secondary y-axis line.




Voila! The resulting visual has an embedded vertical line, which is plotted on a hidden secondary y-axis.




Recall that this goal of this specific scenario was a dotted line which visually differentiated the actual and forecast sections. My last step was to change the formatting of the line to appear as a thin, grey dashed line.

(Note: To achieve your preferred formatting, right-click the line and select Format Data Series in the context menu where you’ll find formatting selections in the resulting dialog pane.)




This method does come with some trade-offs to consider.

One downside is that you lose some control over the exact placement of the line where it crosses the x-axis. Below you’ll see a comparison between the manual vs embedded approach. With the manual approach, the line can be drawn exactly on the tick mark between the Aug & Sep data points, providing a clean alignment with the x-axis. With the embedded approach, the line is centered above the Sep label, resulting in a slightly less seamless effect.




On the cosmetic side, another downside is losing the flexibility to manipulate the length of the line for labeling purposes. I’ll illustrate this with a horizontal bar chart (which I also created using this method). With the manual approach, I can physically draw the line to extend above the x-axis line, aligning it closely to the “Target” text label. With the embedded approach, the line stays below the x-axis line, creating a gap between the line and the label that describes it.




You can download the Excel file to see the behind-the-scenes of these graphs. Are there other methods you’re aware of for achieving this effect? Or other considerations with embedding the reference line directly? Leave a comment with your thoughts!


Elizabeth Ricks is a Data Visualization Designer on the Storytelling with Data team. She has a passion for helping her audience understand the ’so-what?’ as concisely as possible. Connect with Elizabeth on LinkedIn or Twitter.

visualizing uncertainty

We often have some measure of uncertainty in our data—a forecast, prediction or range of possible values. A common challenge is how to visualize that uncertainty and help our audience understand the implications. In today’s post, I’ll use a real-world example to illustrate one approach and share tactics for creating in Excel.

The client’s original visual looked similar to the one below. It shows 2017 earnings per share (EPS) and the forecast outlook for the next four years. The client used a CAGR to forecast a range of possible EPS values from 2018 - 2021.




At first glance, it wasn’t obvious that the blue bars represented a forecast (even with the x-axis labeling of “E” for expected). The first yellow bar represents the 2017 actual EPS and next four blue bars are the forecast for 2018 - 2021 where the solid section represents the midpoint and the data labels is the uncertain piece—the range of projected values.

I made a few design changes to make the graph a little easier to interpret. I first changed the bars to lines and used a dotted line for 2018 - 2021 with unfilled data markers to help visually reinforce the uncertainty.




In Excel, there are two potential ways to achieve this formatting. A brute-force approach is to use a single data series and format each individual data point as a dotted line. Another approach is to graph two separate data series, one as a solid point or line and the second as a dashed line or unfilled circle, with a point of overlap to make the lines connect. You can read more detail about these two approaches in this prior post.

We often face the decision of preserving the y-axis vs. labeling data directly. I’ve done the latter in the visual below. One consideration in this decision point is the level of specificity your audience needs: are the actual values important? Or is the overall shape of the data more important? You can read more about these considerations in this prior post.




Next, let’s revisit how to show the range of forecast values. The original visual is shown again below where the forecast EPS values are represented by the data labels on top of the bars.




Rather than leave the audience with the highly taxing processing of reading these values, we can aid interpretation by instead depicting the forecast as a shaded range around the point estimate. This keeps the emphasis on the midpoints, while reducing clutter and eliminating the additional work the audience has to do. If the specific forecast values are important to the audience, we’ll deal with that momentarily.




The brute-force Excel method to adding this grey band requires a little math, graphing a second data series as a stacked bar and then formatting the stacked bar so that the bottom section renders white and the top section grey. You can download the accompanying Excel file to see how I accomplished this.




But the visual is not yet complete. We should take the opportunity to add value to this data by telling the intended audience what they should know. Let’s assume this is a positive story where the outlook from the original base year (2016) has been extended to 2018. I might add explanatory text, paired with strategic use of color (I chose green to depict positivity) to focus attention on the relevant points of the data. If specific forecast EPS values are important for a given year, I could include them for context in the text. For a very technical audience, I might include even more detail with the statistics around the forecast. Just a reminder to always design with the audience’s needs in mind!






Are you aware of other methods to achieve this effect? Have you seen other examples of uncertainty depicted effectively or tips you’d like to share? Leave a comment with your thoughts!


Elizabeth Ricks is a Data Visualization Designer on the Storytelling with Data team. She has a passion for helping her audience understand the ’so-what?’ as concisely as possible. Connect with Elizabeth on LinkedIn or Twitter.

more Americans are tying the knot

The Pew Research Center reports on some fascinating data. But I tend to be underwhelmed with the way they illustrate this data visually. In many cases, some relatively minor modifications would transform the graphs from "not horrible" to great. Check out this post for an example.

Read More

slopegraph template

I've found myself increasingly using slopegraphs as of late. They can be useful when you have two time periods of data and want to quickly see increases/decreases between the two periods (example below; see second half of this post for more discussion and another example).

From a formatting standpoint, however, they are annoying. They take a lot of time to set up because basically everything is different from graphing application defaults. I realized as I was making a recent one that I make the exact same changes every single time and may actually leverage a template for this (I say "may actually" because I thought that would be the case once before, but it didn't happen, though I've heard from others that they do use it).

In case you find yourself wanting to use a slopegraph (or quickly see whether one will work given the specifics of your data), you can download the Excel template I created here (screenshot below).
